iClock + iClock dp

The new Generation of digital Clocking for Broadcast and Post Production

Product discontinued!

"Without doubt, the iClock is the most sophisticated and versatile master clock generator currently available, but despite the complexity of rates and options it is surprisingly easy to configure and use." – Hugh Robjohns, Sound On Sound

The iClock is a synchronizable, high-precision clock synthesizer which is designed to be the reference in digital audio and video studios as well as broadcast stations. Based on a totally new concept of frequency generation, developed by MUTEC, the unit offers an unchallanged flexibility for synchronization of different devices to one house clock. On this occasion iClock breaks traditional and unflexible forms of chaining input and output signals and allows for the first time their completely free combination and scalability.

  • Synchronizable reference clock synthesizer for PAL/NTSC video, Word Clock, AES11 and S/P-DIF syncs
  • High-accurate and lowest-jitter clock base with < 0.1ppm accuracy (when shipped)
  • Redundant (fail-safe) clock supply in all operation modes
  • DDS-based jitter elimination of incoming reference signals
  • Synchronization and generation of 36 different Word Clocks rates
  • DSD64, DSD128 + DXD clock rates standardly supported
  • Synchronization and generation of all AES3/11 and S/P-DIF clock rates up to 192.0 kHz
  • Generation of different pilot tones
  • No limitation of input assignment at the universal inputs
  • SoftReLock functionality for recurring reference signals
  • CYCLESYNC functionality for automatic re-synchronization between different references
  • Generation of multiple clock rates at the same time
  • Drop out compensation of incoming reference signals
  • Totally free scalability of all output clock signals
  • Automatically working signal management aligned to AES11 and EBU R83
  • Digital varispeed up to ±20% availabel during internal and external synchronization
  • Supports all US and European pull up/pull down rates for film, audio and video transfers
  • Follows external references up to ±20 % (reducible)
  • Eeasy and convenient operation through large display
  • Soft and hardware upgradeability and recalibratability
  • Front panel lock-out for preventing misuse
  • Built-in, internationally useable power supply



The iClock’s principle operation is completely different to conventional products. The user, as a matter of priority, defines the clock rates and formates which have to be constantly available at the outputs without any disturbances   not depending on the incoming reference signals. Limitations regarding defined combinations of input and output clock signals do not exist.

The iClock's philosophy is addressed to provide the highest possible failure safety for all outgoing clock signals which is needed especially for broadcast stations or centralized clock distribution systems. With regards to this functionality up to 3 independent external references can be auto-detected and locked in a user-defined sequence without any phase-jumps or interruptions in the outgoing signals. This applies also to external clock frequency changes, e.g. from 44.1 kHz to 48.0 kHz or reference clock changes, e.g. from video to GPS or AES11. Even a manual change of the reference signal by replugging the clock lines at the input connectors is possible during operation!. If all external references are lost, the iClock synthesizes the outgoing clock signals based on the last incoming frequency constantly. This applies also if a reference signal drifts out of the lock range. If the absent reference clock returns the synthesizer will lock gradually again based on iClock's SoftReLock functionality which ensures interruption-free adjustments of all outgoing clock signals. In this case a continuously clock supply for all connected devices is guaranteed during any operation mode.

Using DDS-coupled frequency generation and latest DSP-based filtering technologies in combination with an extremely low-jitter clock basis, the iClock eliminates the jitter of incoming reference signals completely. This ensures highest possible jitter attenuation for all outgoing clock signals. As a result the synchronization of connected devices is much more reliable and the sound quality of every AD/DA converter will be increased significantly.


For todays A/V productions a precision synchronization of the used audio and video equipment is imperative. To reach the maximum of accuracy for synchronization of audio and video equipment, iClock offers a unique, high-precision signal management. The phase relationships of all input and output signals will be observed and adjusted in real-time automatically, aligned to AES11-1997/2003 und EBU R83-1996. This process reaches a control accuracy in the nanosecond range!


Due to requirements of todays professional A/V studios, iClock offers in its basic version a variety of clock outputs with variable adjustable parameters. In the case that often devices of different generations have to work together, especially the status bit settings of the AES11 and S/P-DIF outputs are individually adjustable in different parameters.

As for future standards of digital audio technologies iClock offers already today an unequalled variety of synchronizable and generatable Word Clock rates. On this occasion the system does not limit to the currently “highest” clock rate of 192.0 kHz, but it supports a total of 36 different clock rates up to 24.576 MHz(!). Included are so-called Super Clocks for Digidesign’s ProTools™ system as well as DSD and DXD clock rates for SACD mastering applications. Due to iClock’s unique principle of frequency generation all clock rates can be routed to the Word Clock outputs individually.

iClock provides standardly all pull up and pull down factors for audio, video and film transfers. As well as a powerful a digital varispeed function. That can be used to accommodate a playback to the pitch of the singers voice or to generate new pull up/pull down rates. As for simultaneous editing of PAL and NTSC based video material, a second video generator is available as an upgrade. Both generators are adjustable independently and can be locked to any accepted incoming reference signal. Furthermore an alarm interface is optionally available to observe different possible failure conditions, like reference clock loses or power supply loses, from a centralized location.

Investment into your Future

Due to its unique concept, iClock is not only oriented on current requirements of digital audio and video techniques. With their trend-setting features and software and hardware upgradability it is also usable for future technology standards. Thus iClock represents a long-term investment for every modern A/V studio.

Regarding many unique features like

  • synchronizing and generating of all Word Clock rates from 8.0 kHz to 24.576 MHz (DSD and DXD clock rates included),
  • generating PAL and NTSC composite video sync simultaneously,
  • free scalability of all clock outputs,
  • automatic locking up to 3 different external references,
  • generation of different film and video frame clock rates,
  • digital varispeed up to ±20 %,
  • automatic programming of new clock rates on customer's request,
  • real-time phase-correction of all outgoing clock signals,
  • soft and hardware upgradability and recalibratability,

… MUTEC’s iClock offers all technologies and the most versatile concept for future-oriented reference generation already today!

Technical Data


  • 1 x XLR input for AES3/11, 110 ohms terminated, transformer balanced
  • 2 x BNC input for various references, 75 ohms terminated, unbalanced
  • 4 x XLR output for AES3/11, terminated, transformer balanced, buffered
  • 8 x BNC outputs for Word Clock, terminated, unbalanced, individually buffered
  • 4 x BNC outputs for video, terminated, unbalanced, individually buffered
  • 2 x Cinch (coaxial) output for S/P-DIF, terminated, unbalanced, buffered

All digital audio inputs and outputs work between 16.0 kHz and 192.0 kHz.

Frequency Synthesis and Basis Clock Generation

  • Direct Digital Synthesis (DDS), 172,8 MHz internal clock rate, 48 bits frequency resolution
  • TCXO, temprature compensated crystal oscillator, burned-in and pre-aged
  • Clock accuracy (shipped): < ±0,1 ppm
  • Clock stability versus temperature: < ±0,5 ppm
  • Operating temperature: 0° C to +50 °C

Power Supply

  • Type: Internal, self-switching power supply
  • Input Voltage: 90 V – 260 V (automatic adjustment), 47 Hz – 440 Hz
  • Power Consumption: max. 15 W

Mechanical Details

  • Cover size/material/color: 440 x 42 x 200 mm (dp version 240 mm) without connectors (W x H x D), steel sheet 1 mm, black powder-coated
  • Front panel size/material/surface: 483 x 44 x 3 mm (W x H x D), aluminium, powder-coated
  • Weight: iClock approx. 3000 g, iClockdp approx. 3100 g

Synchronizable and generatable Word Clock Rates

Factors/Dividers of basic clocks
Basic clock:
32,0 kHz
Basic clock:
44,1 kHz
Basic clock:
48,0 kHz
/4 8,0 11,025 12,0
/2 16,1 22,05 24,0
x1 32,0 44,1 48,0
x2 64,0 88,2 96,0
x4 128,0 176,4 192,0
x8 256,0 352,8 384,0
x16 512,0 705,6 768,0
x32 1024,0 1411,2 1536,0
x64 2048,0 2822,4 3072,0
x128 4096,0 5644,8 6144,0
x256 8192,0 11289,6 12288,0
x512 16384,0 22579,2 24576,0

Generatable Pilot Tone Clock Rates

Type PAL/SECAM (Hz) NTSC (Hz) Film (Hz)
Color Frame Rate 25 29,97 24
Color Field Rate 50 59,94 48
Black + White
Frame Rate
Black + White
Field Rate

Synchronizable and generatable AES11 und S/P-DIF Clock Rates

Basic clock:
32,0 kHz
Basic clock:
44,1 kHz
Basic clock:
48,0 kHz
/2 16,0* 22,05* 24,0*
x1 32,0 44,1 48,0
x2 64,0 88,2 96,0
x4 128,0 176,4 192,0
* Only generatable, not synchronizable!

User Stories

Seunghyun Chung
  • Seunghyun Chung, South Korea
    "We were amazed by the improved resolution that we got compared to any clock or reference generator before. The clarity of the sound and the spaciousness of the stereo image upgrade our existing DAD AX32 converter. No matter what digital equipment you are using, the REF 10 and iClock will no doubt provide a superior sound."
Hugh Robjohns
  • Hugh Robjohns, Sound On Sound
    "Without doubt, the iClock is the most sophisticated and versatile master clock generator currently available, but despite the complexity of rates and options it is surprisingly easy to configure and use."
Rob James
  • Rob James, Resolution Magazine
    "iClock is the most comprehensive solution I've seen to the clocking needs of an entire installation. In the real world we operate in, the multiple simultaneous output formats and versatile rates are the clincher. At this price, the iClock is a steal."
Len Davies
  • Len Davies, Audio Media
    "This is truly a 'No Brainer' for anybody in a similar situation to myself, so get one and I'm sure you'll never look back."
Barry Grint
  • Barry Grint, Alchemy Mastering, UK
    "We use MUTEC iClocks throughout Alchemy and find that being able to operate different sample rate on each output perfect for our workflow. There is a marked improvement in the imaging and definition, which really helps us to bring the best out of every song"
Matt Colton
  • Matt Colton, Alchemy Mastering, UK
    "The iClock is an easy to use, no brainer, improve everything piece of kit. Rock solid clocking across eight devices and all sample rates – the difference in the sound of my studio is marked, with tighter and deeper bass, more solid and precise stereo image and greater front to back three-dimensional perspective."
Simon Francis
  • Simon Francis, UK
    "The MUTEC iClock is able to simultaneously generate four independent sampling rates over word clock, not multiples of a base frequency, so in a mastering environment it has proved the perfect clock to be able to deal with sessions where both sources and mastered versions are received and delivered at a variety of different sampling rates and resolutions. There is no other clock that offers this level of functionality and accuracy of clock. Absolutely essential kit."
Sung Joo Lee
  • Sung Joo Lee, CJ E&M Tooniverse, South Korea
    "In the past, we used word clock equipment for other pro audio companies. Once we installed the MUTEC REF 10 & iClock we were immediately impressed by the clear sound. Before I'de always been unhappy with the mid & bass frequency range, but after connecting the REF10 & iClock all of this was resolved. The clarity of the sound, the wider stereo image and the low-end resolution make the AVID MTRX main converter sound so much better."

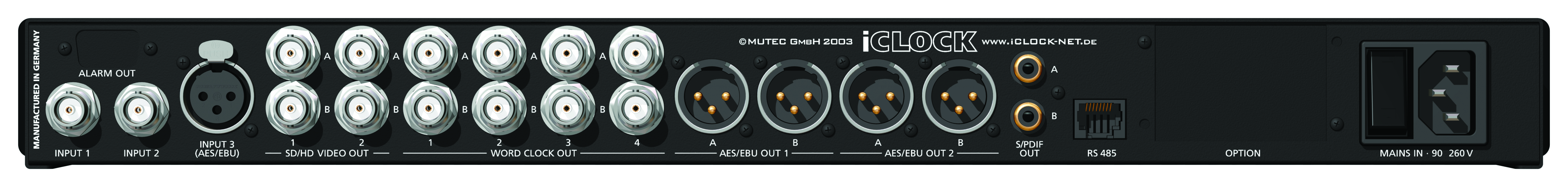

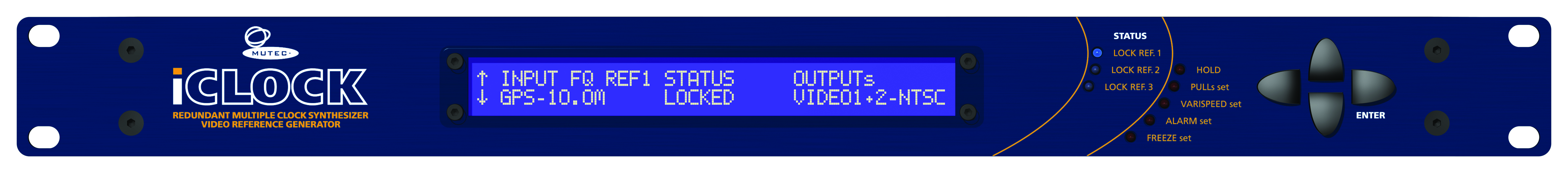

Logo Front View Rear View

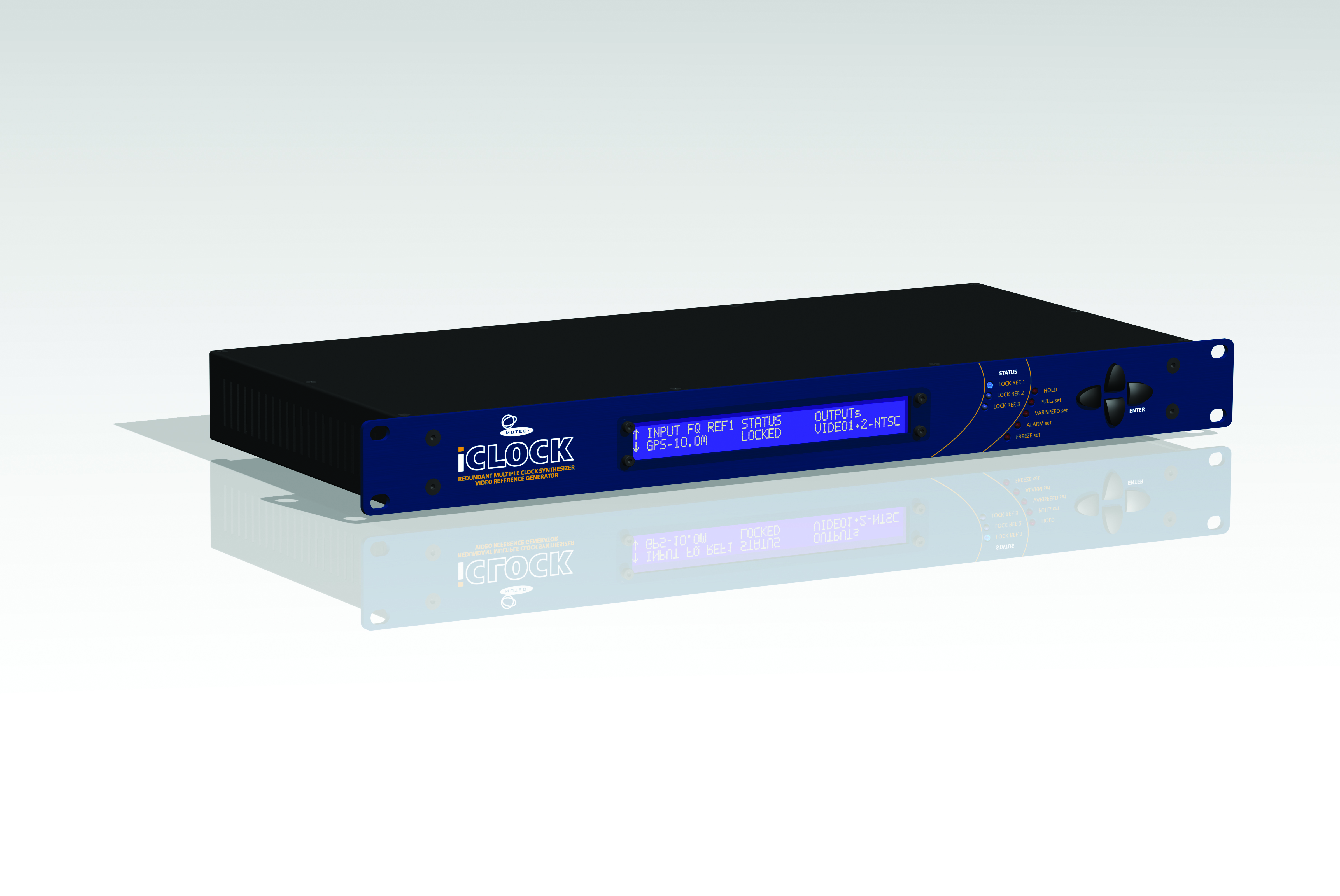

Single Perspective,

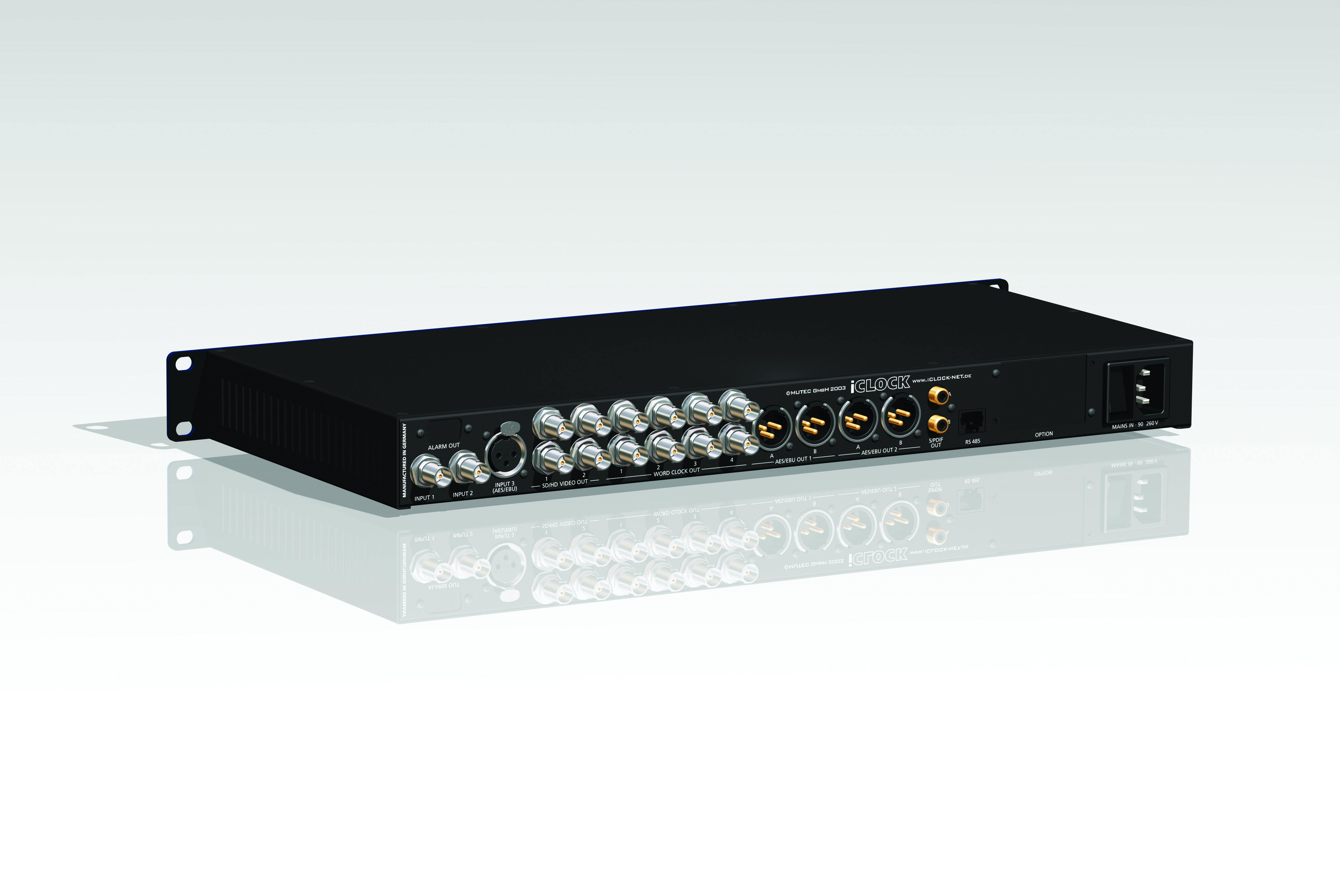

Single Perspective,

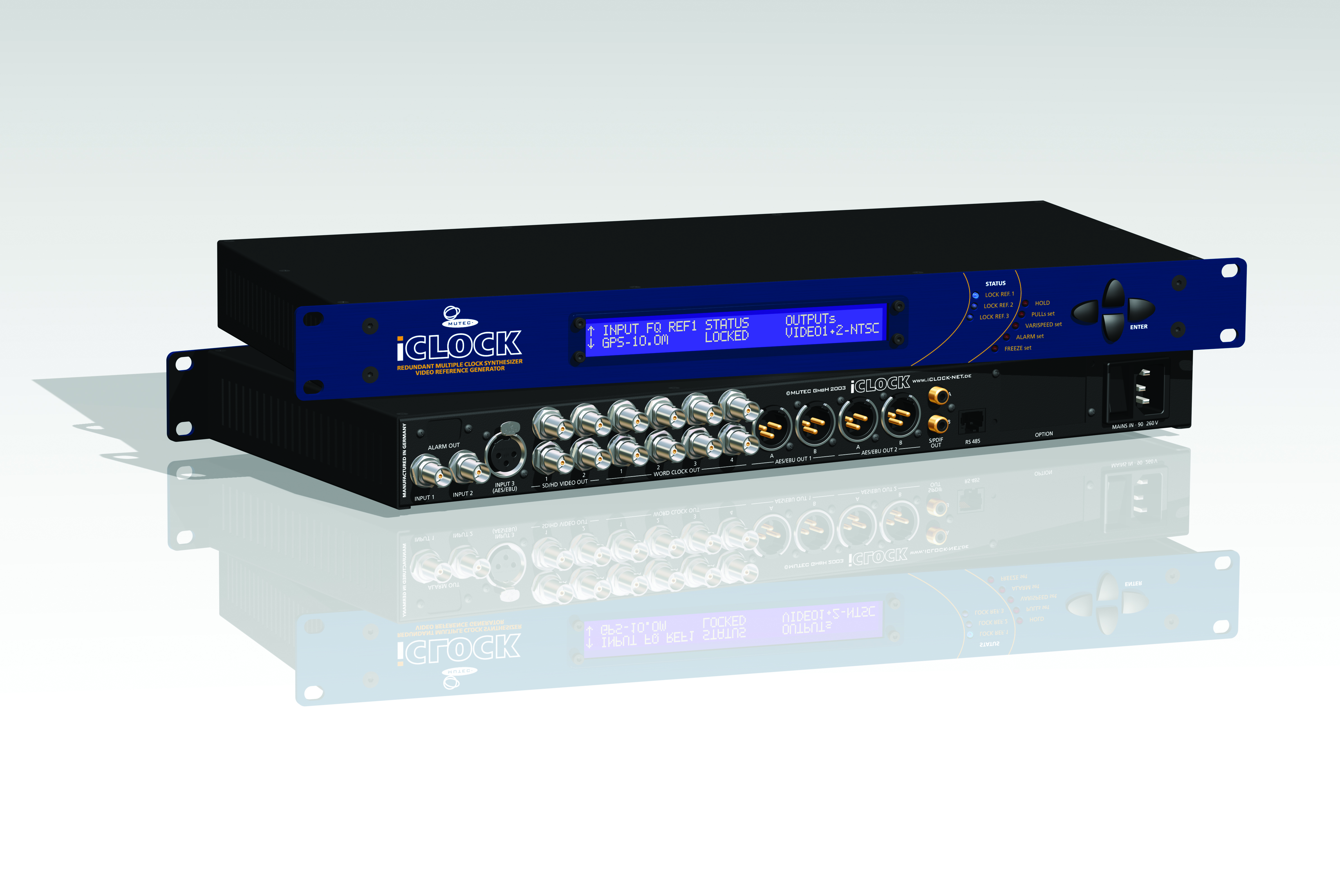

Double Perspective,
Front + Rear View
Brochure Cover iClock-Bedienungsanleitung
CMYK Product Manual

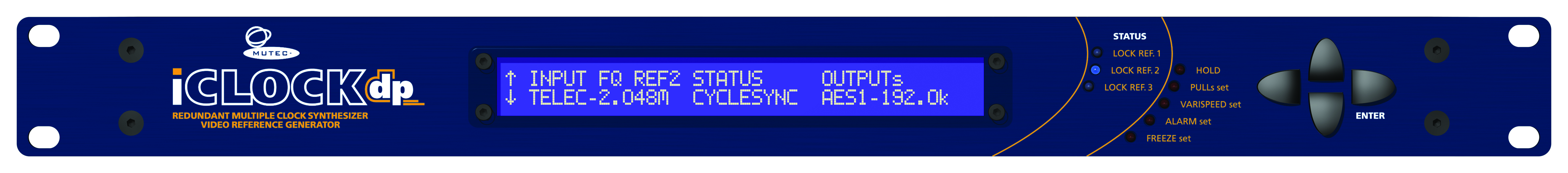

Logo Logo Extension Front View

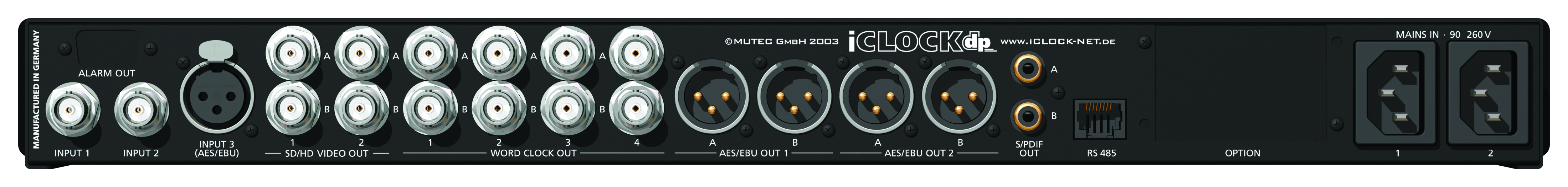

Rear View Single Perspective,
