MC-3.3 Smart Clock VR

SD/HD Video Sync Master Clock Generator

Product discontinued!

MC-3.3 Smart Clock VR is an universal and high accurate SD/HD video sync master clock generator.

  • SD video and HD tri-level syncs simultaneously available
  • All SD/HD video reference signals are coupled to one AES11, Grade 1, reference clock (0.5 ppm)
  • Generates HD tri-level test patterns
  • Supports Slow-PAL and NTSC b/w
  • Built-in international power supply

Description

The MC-3.3 Smart Clock VR provides different high-stable SD video and HD tri-level reference signals for simultaneous synchronization of SD/HD video devices in television stations, video editing suits or film/video copy studios. The unit offers extremely high flexibility, 12 outputs in total and a new designed, simple user interface.

The SD video reference generator supports PAL 24/25 fps and NTSC 29.97/30 fps as Black + Burst, composite sync and color bar. The HD tri-level video reference generator offers 720p, 1080i and 1080p formats with various frames rates. Furthermore, MC-3.3 generates different HD tri-level test patterns as YPrPb component or RGB signals. The SD and HD video generators are indipendently adjustable at the same time. Phase relations of the generated signals will be recognized and tuned automatically. Thus, MC-3.3 Smart Clock VR offers a flexible solution for every video editing facility.


Technical Data

The technical data will be added as soon as possible.
Please use our contact form to send us your inquiry if technical information are needed in the meantime.
Thank you.

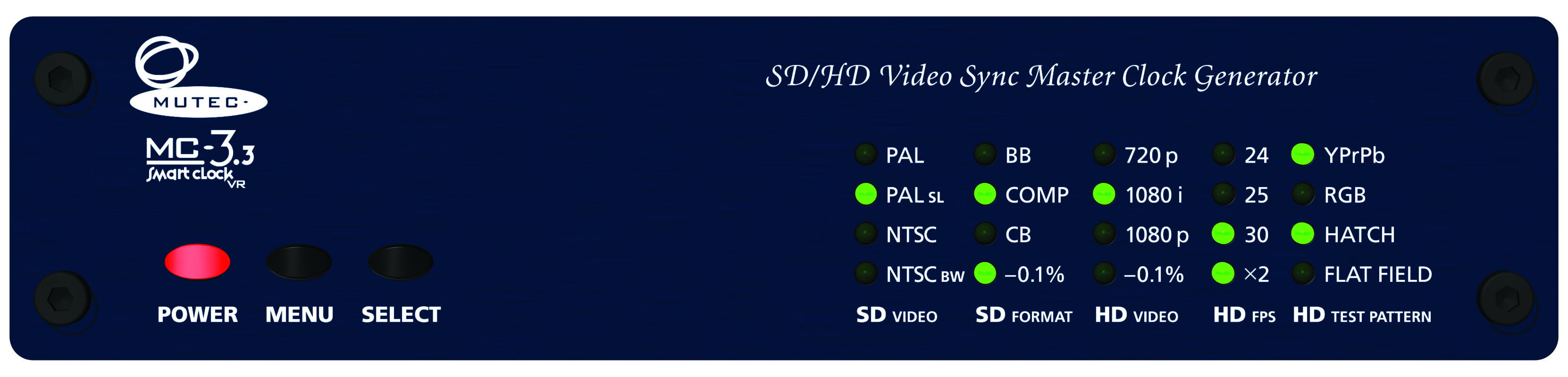

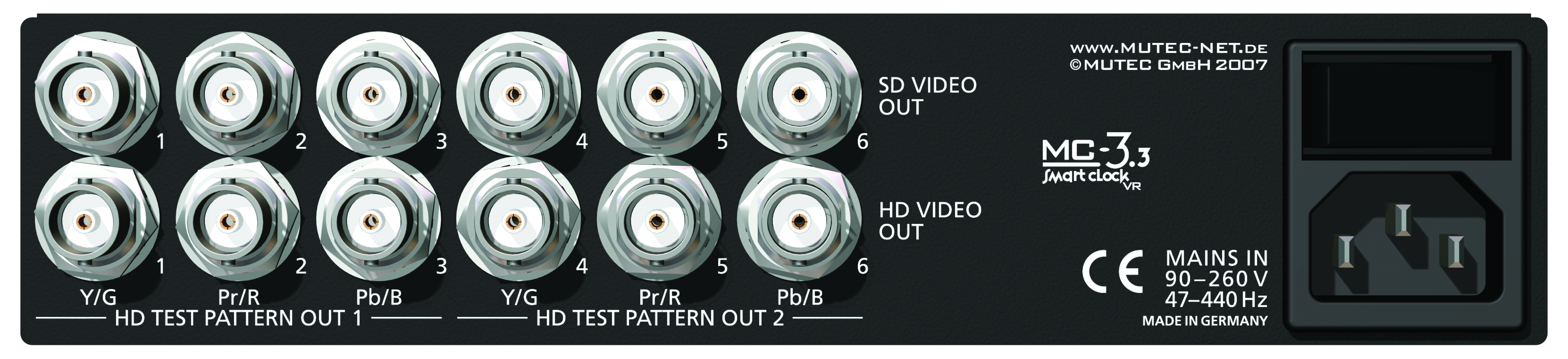

Logo Front View Rear View
CMYK CMYK CMYK

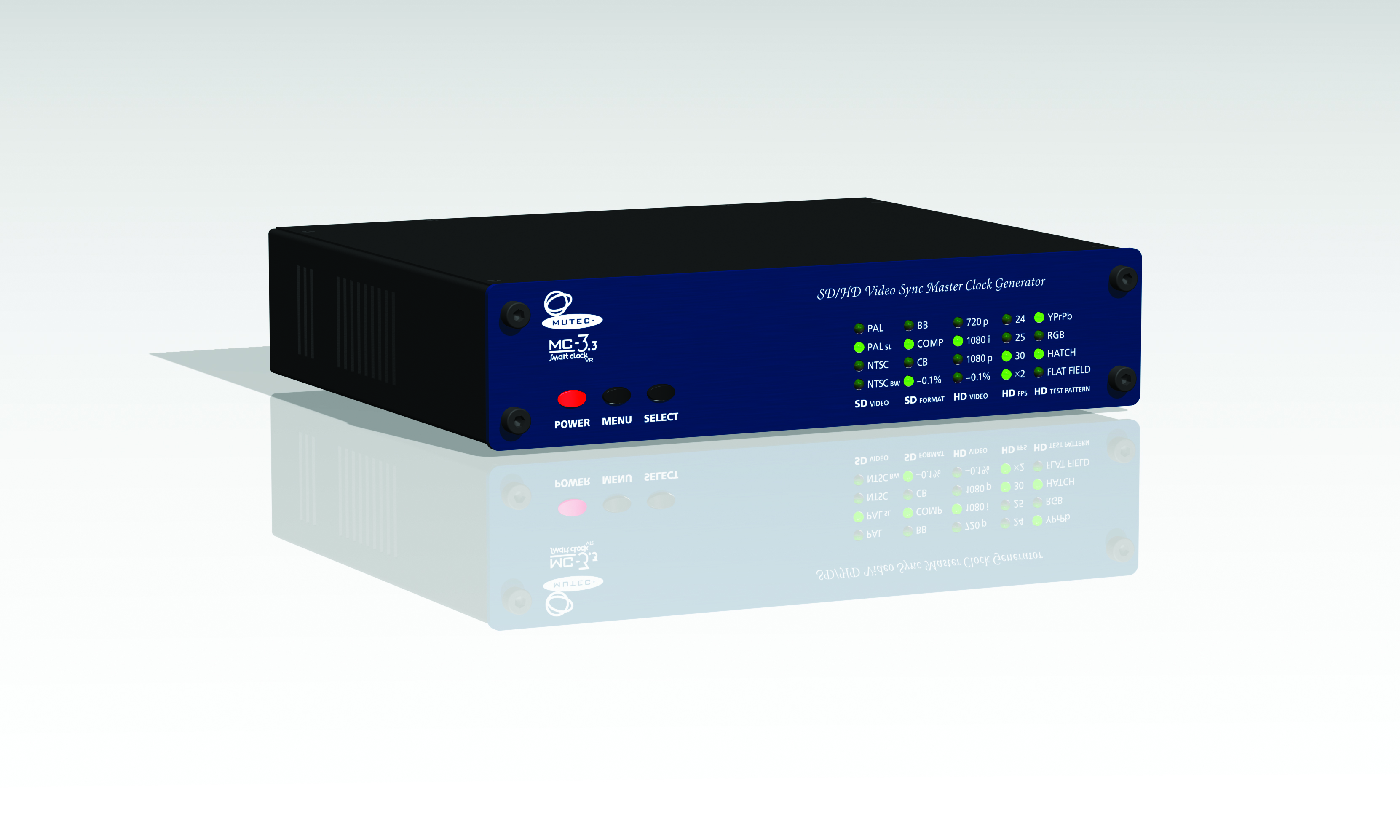

Single Perspective,
Front

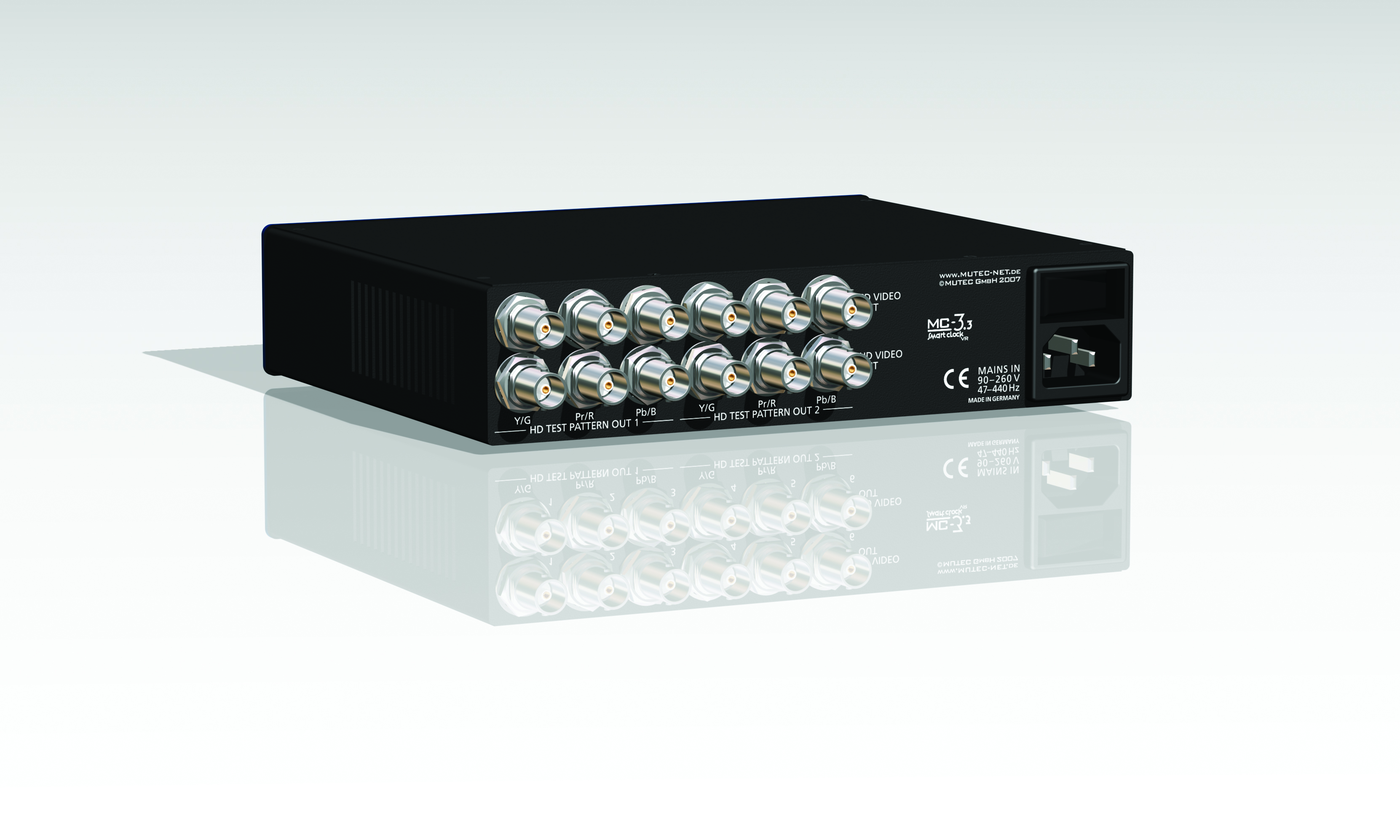

Single Perspective,
Back

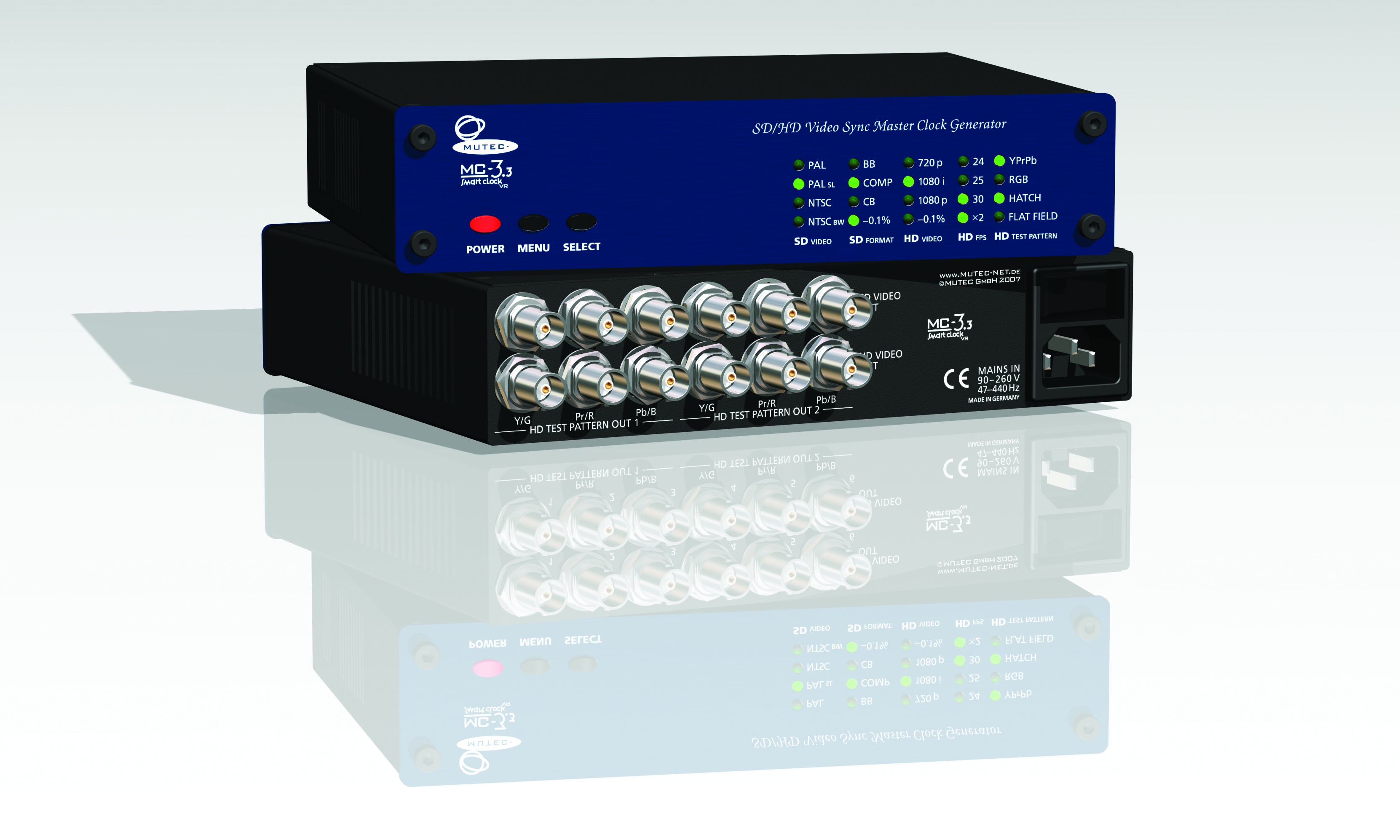

Double Perspective,
Front + Rear View
CMYK CMYK CMYK
MC-3.3 Manual
Product Manual

Technical Inquiry

Subscribe Newsletter


Applications

  • SD video and HD tri-level synchronization simultaneously
  • Film and video transfers
  • Stellate video clock signal supply
